28kw-36kw Condensing Heat Exchanger

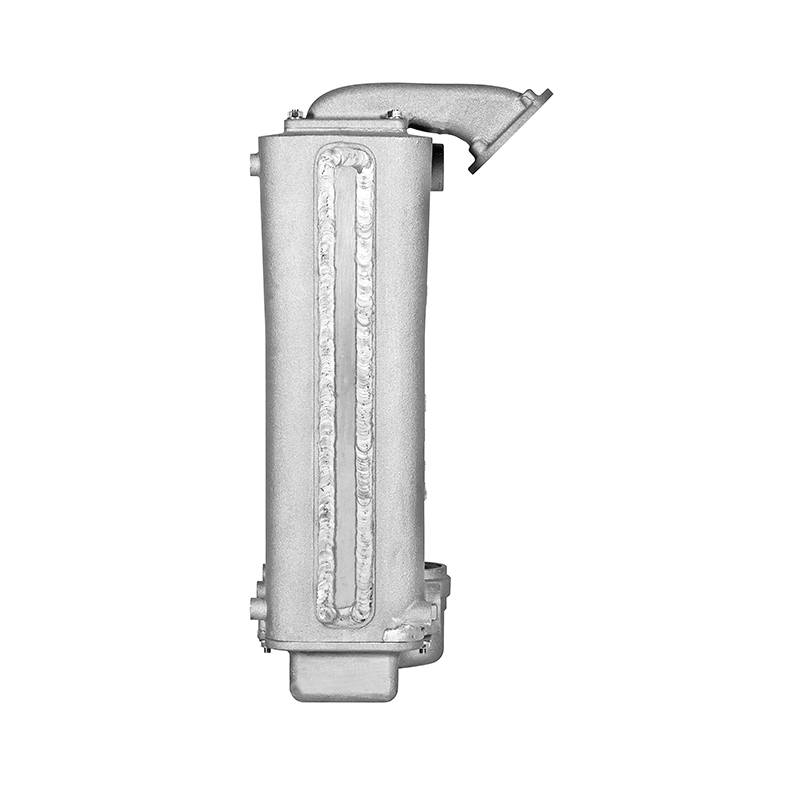

Furesoro Series 28kw-36kw Condensing Heat Exchanger

1.Product Introduction

The design capacity about Furesoro series aluminium casting domestic condensing heat exchanger is from 28KW to 36KW. It is the main body component of the condensing boiler. 36KW condensing heat exchanger function generates low emissions and low exhaust temperatures into the atmosphere while heating the backwater temperature and recycles all available heat so that the heat efficiency can reach 108%. Subsequently the process requires a 100% leak test, usually with air pressure or an hydraulic pressure test carried out by the foundry.

2.Product Parameter (Specification)

FURESORO 36
Type	condensing heat exchanger FURESORO 36	Unit
Nominal Input	28-36	kw
Efficiency Load 30%	107	%
Operating Pressure	4.5+1.5	bar
L*W*H	124*264*371	mm
Flue connectionφ	60	mm
Certificate	CE/RoHs/ASME
Material	EN1706/AC43000

3.Product Feature And Application

Feresoro 36kw condensing heat exchanger especially designed for the domestic market. Compared to similar products on the market, the Furesoro 36 is a heat exchanger with a fully water cooled combustion chamber and has a serial waterflow. These two features in combination with its robust design make it the most reliable aluminium heat exchanger on the market.

4.Product Details

Benefits:
Compact esthetic design.
Serial waterflow.
Low hydraulic pressure drop.
High modulation range possible.
Low pneumatic resistance.
High quality/price ratio.
Robust reliable design based on 30 years of developing experience.
Combustion chamber fully water cooled, no refractories needed.
Worgas burner inside.

DETAILS:

Typical quality control:

Certificate:
