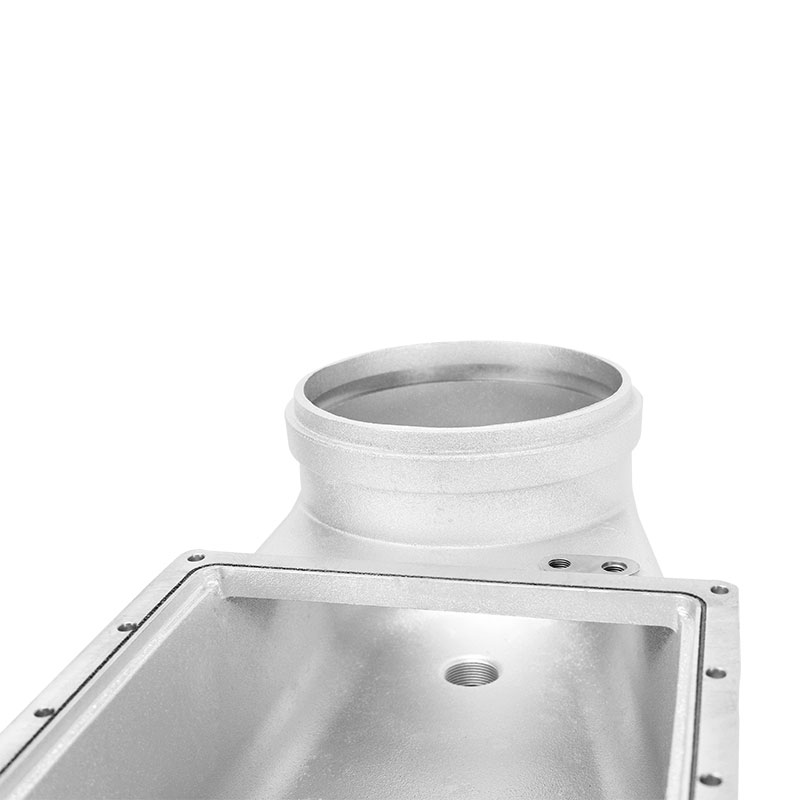

Heat Exchanger Part Condensing Sump
  • Heat Exchanger Part Condensing SumpHeat Exchanger Part Condensing Sump
  • Heat Exchanger Part Condensing SumpHeat Exchanger Part Condensing Sump
  • Heat Exchanger Part Condensing SumpHeat Exchanger Part Condensing Sump
  • Heat Exchanger Part Condensing SumpHeat Exchanger Part Condensing Sump
  • Heat Exchanger Part Condensing SumpHeat Exchanger Part Condensing Sump
  • Heat Exchanger Part Condensing SumpHeat Exchanger Part Condensing Sump

Heat Exchanger Part Condensing Sump

Zhejiang HEC Machinery is a large-scale condensing heat exchanger manufacturer and supplier in China. Our foundries are specialized in complex aluminium castings for example heat exchanger part condensing sump and air brakes valves for trains. We are aluminum casting specialist since 1986. These complex parts have a lot of sand cores and are produced in our facilities with a capacity of 70.000 ton of aluminium per year where we offer sand casting, shell core, gravity casting and die-casting.

Send Inquiry

Product Description

Heat Exchanger Part Condensing Sump

1.Product Introduction

The material of heat exchanger part condensing sump is EN1706/AC43000. We have various types of heat exchanger part condensing sumps to match 18-90kw wall-hung boilers and 90-2800kw commercial boilers. All products we have 2 years warranty after delivery, and we have CE/RoHs/ASME certifications.

2.Product Parameter (Specification)

heat exchanger part condensing sump

Type

18KW

24KW

28/32/36KW

70-90KW

90-300KW

1400-2800KW

Weight/PC(kg)

0.76

0.77

1.16

4.1

3.67/4.52

21.75

Material

EN1706/AC43000

Dimension(L*W*H) mm

261*160*125

341.5*92*115.2

339*146.8*115

470.5*310*180

(346.3-450.3)*303*165.8

675*529*522

Certification

CE/RoHs/ASME

3.Product Feature And Application

4.Product Details


Typical quality control:

Certificate:
