800kw-1400kw Condensing Heat Exchanger

Intermodul Maxi Series 800kw-1400kw Condensing Heat Exchanger

1.Product Introduction

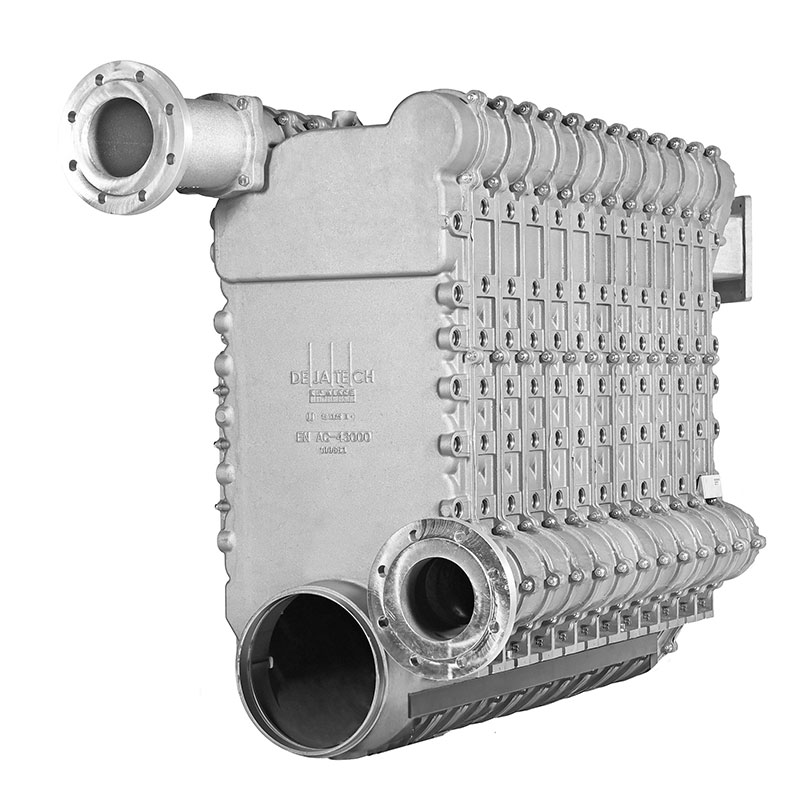

The design capacity about intermodul maxi series aluminium casting domestic condensing heat exchanger is from 800KW to 1400KW. Aluminium casting commercial Condensing Heat Exchanger, consists of Left, Middle and Right Sections, is the main body component of the Condensing Boiler. The intermodul series 350kw to 700kw condensing heat exchanger design combined with condensing tray, all maintenance can be completed at the front, saving space in the back, and applicable to heating and hot water supply for a large area such as hotel, school, hospital, etc.

2.Product Parameter (Specification)

INTERMODUL MAXI Heat Exchanger
Type	11-L	13-L	Unit
Nominal Input	680-850	850-1020	kw
Efficiency Load 30%	107	107	%
Operating Pressure	6	6	bar
L=781*H=1120*L=	1492	1682	mm
Flue connectionφ	250	250	mm
Weight	348.4	412.6
Certificate	CE/RoHs/ASME
Material	EN1706/AC43000

3.Product Feature And Application

Based upon the revolutionary design of the ‘Intermodul’ we created an even bigger version; The Intermodul Maxi 800kw to 1400kw condensing heat exchanger. Our innovative manifolds (Tichelmann system) and the sump are prefab integrated in every single casting section. This means lesser components and higher reliability. The fl ow and return pipe exit the Intermodul boiler at the backside. Our patented heat exchanger consists of a front-, back-, and mid-section casting. Industrial capacities from 680 to1020 kW can be reached. Our Intermodul MAXI system gives our customers the possibility to assemble high capacity tailor made solutions.

4.Product Details

Benefits
For industrial use (XL).
Best price / quality ratio in the market.
Low hydraulic pressure drop because of parallel water flow.
Manifolds (Tichelmann system) and sump integrated in the casting sections.
Low pneumatic resistance.
Combustion chamber completely water cooled, no refractories needed.
High capacity on a small footprint.
Available as heat cell only or as a complete tested boiler under private label.
CE approved.
State of the Art Worgas cylindrical burner inside.
Tailor made capacity.
Easy cleaning and maintenance.
Global patented design.

Separate sections can also be ordered.
